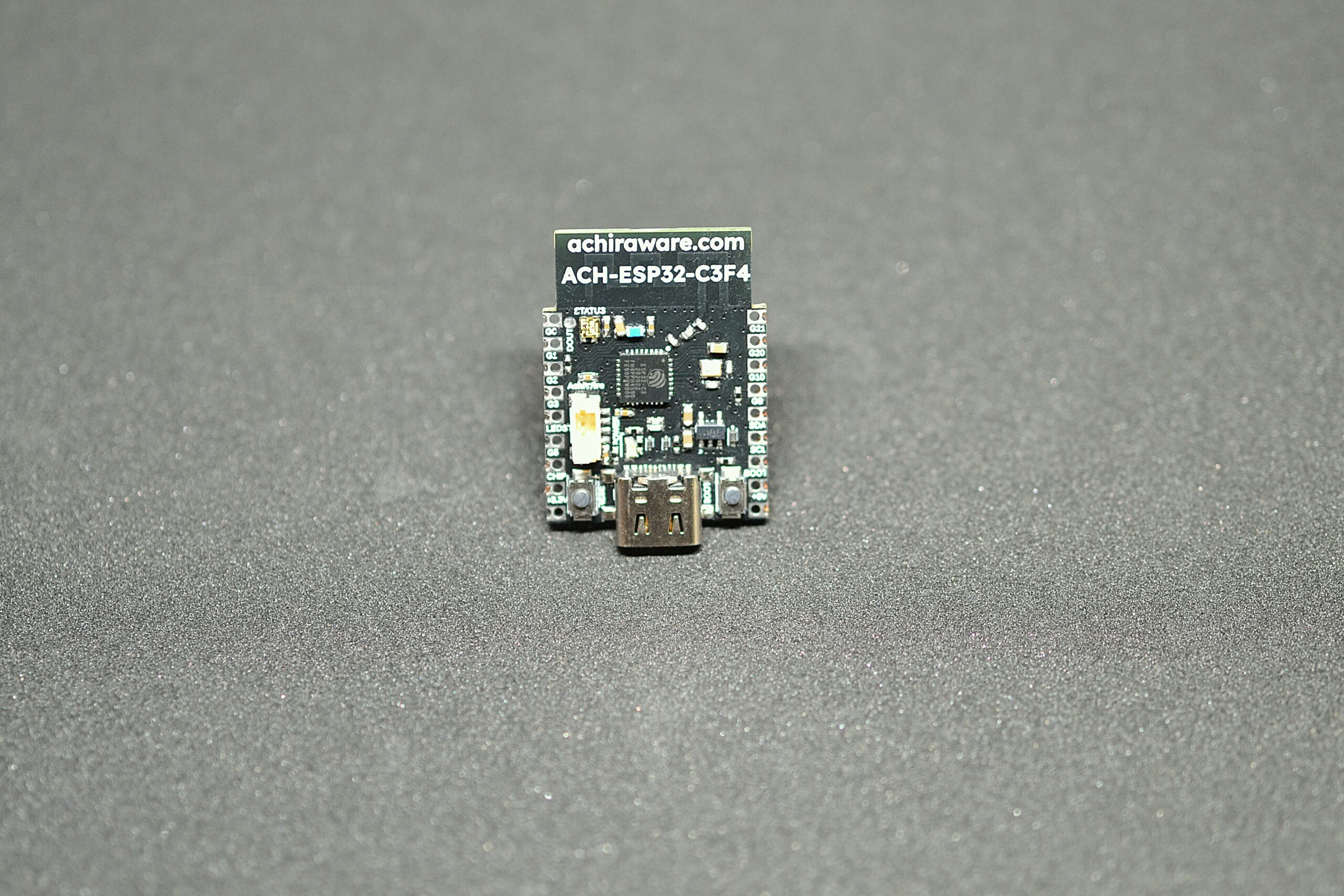

ACH-ESP32-C3F4 — ESP32-C3 Development Board · Designed in PT

13,00 € excl. VAT

Compact RISC-V development board with ESP32-C3FH4 and 4MB Flash. Hand-assembled in Portugal, includes I2C cable and pin headers. Features castellated holes for direct SMD soldering and 3.3V to 5.5V input.

Also available on verified maker stores:
Buy on LectronzBuy on Tindie

10 in stock

Low-power development board built around the ESP32-C3FH4 — Espressif’s RISC-V single-core wireless chip. Wi-Fi and Bluetooth LE. Hand-assembled in Portugal.

Technical specifications

  • MCU: ESP32-C3FH4
  • CPU: Single-core RISC-V @ 160 MHz
  • Flash: 4 MB (embedded)
  • SRAM: 400 KB
  • Wi-Fi: 802.11 b/g/n (2.4 GHz)
  • Bluetooth: 5.0 (BLE)
  • USB: USB-C (power + programming, CDC)
  • AchiWire port: JST SH 1.0mm 4-pin · GND / +3.3V / SDA / SCL · compatible with Qwiic and STEMMA QT
  • Logic level: 3.3 V
  • Supply: 3.3 V – 5.5 V via USB-C or VIN

Pre-flashed firmware included. I2C cable in the box. Designed in Porto, Portugal.

Description

Custom development board built around the genuine ESP32-C3FH4 microcontroller — RISC-V architecture with Wi-Fi and Bluetooth LE, designed and hand-assembled in Portugal.

Microcontroller

  • ESP32-C3FH4: 32-bit RISC-V single-core @ 160MHz
  • 4MB integrated Flash
  • 2.4GHz Wi-Fi 4 · Bluetooth LE 5.0
  • Hardware security: AES-128, RSA-3072, secure boot, flash encryption

Board features

  • Precision-tuned PCB antenna — reliable 2.4GHz performance, no external components needed
  • Castellated holes + 2.54mm through-hole headers — use on breadboard or solder directly onto your PCB as a module
  • JST SH 1.0mm I2C connector — compatible with Qwiic (SparkFun) and STEMMA QT (Adafruit) ecosystems
  • Addressable RGB LED (GPIO 4, WS2812)
  • USB-C — power and UART programming
  • LDO voltage regulator 1A — power from 5V via USB-C or up to 5.5V on VIN
  • All available GPIO broken out
  • Approximately 50 × 30mm · Designed in PT

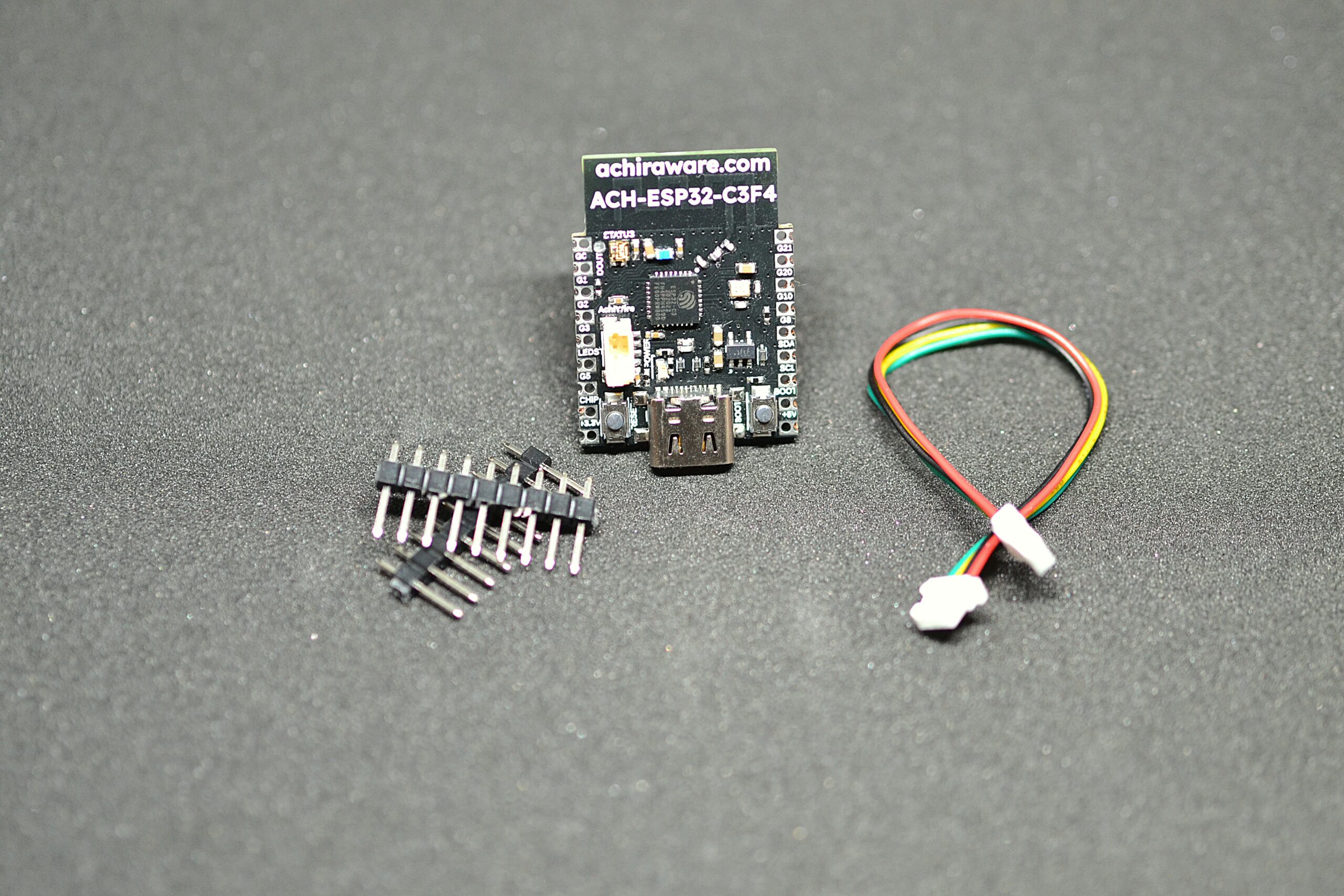

In the box

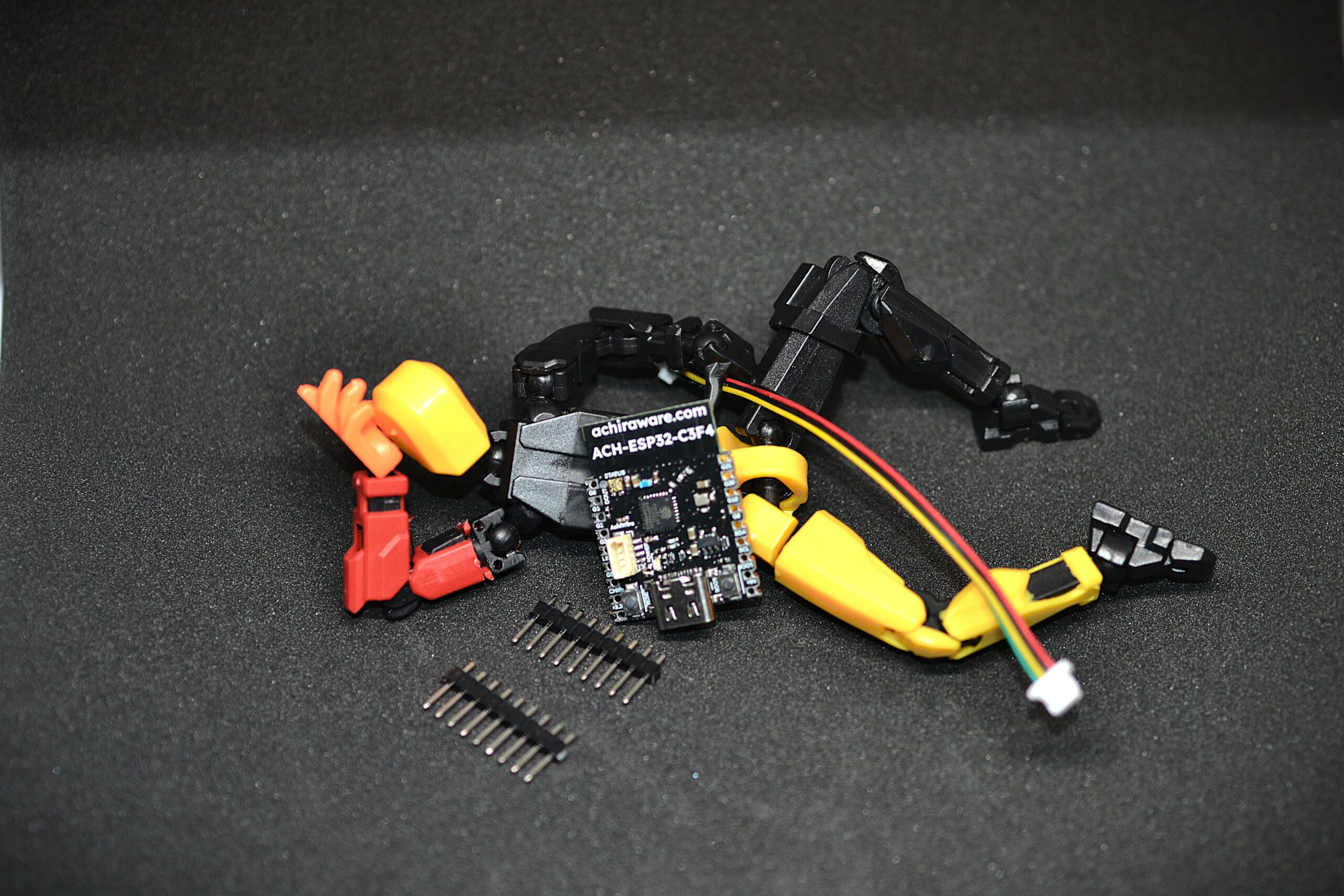

  • ACH-ESP32-C3F4 board
  • JST SH 1.0mm 4-pin I2C cable
  • 2.54mm male headers

Compatible with: ESP-IDF · Arduino framework · MicroPython · Zephyr RTOS

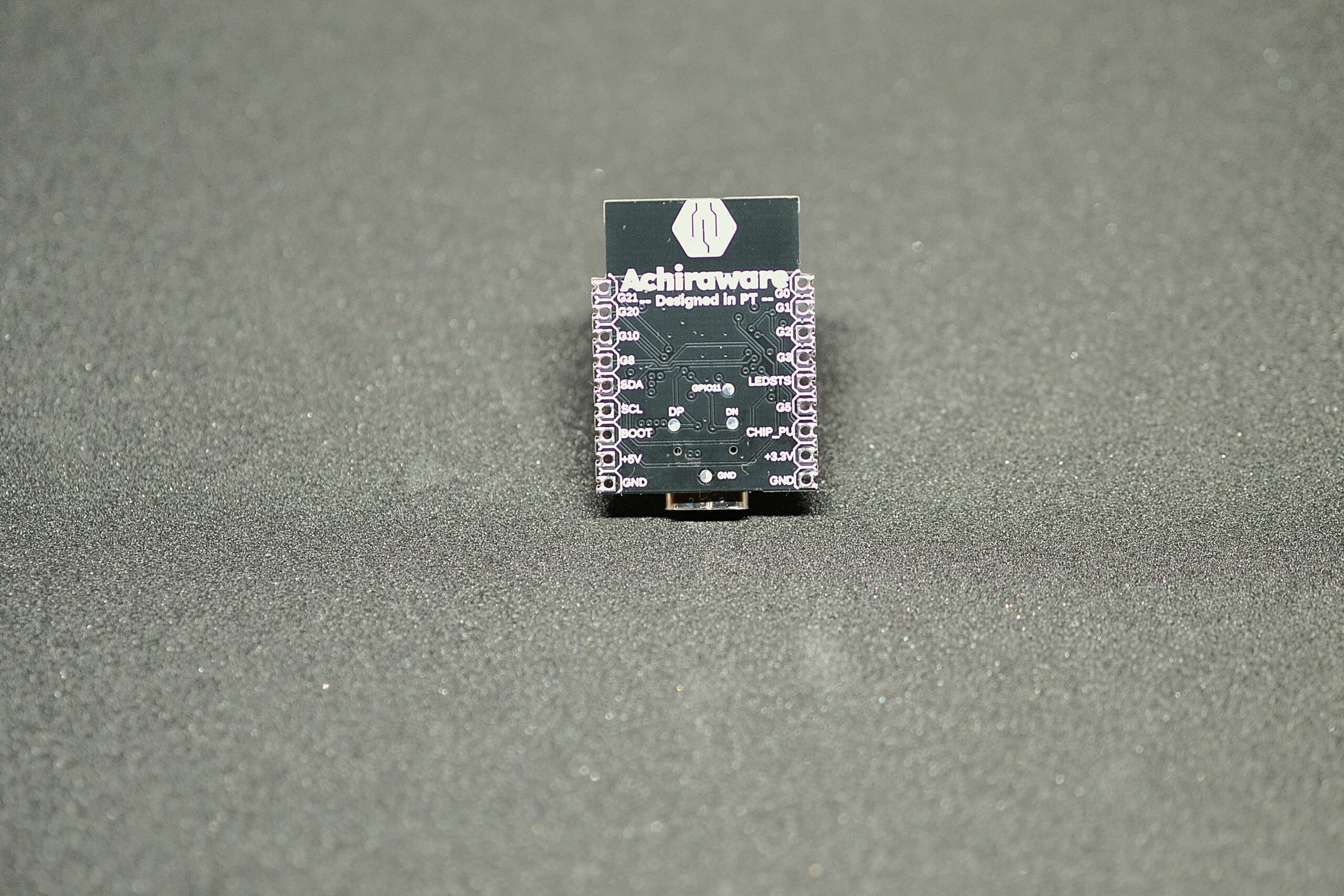

Pinout — GPIO exposed on the headers (2.54 mm)

Viewed with USB-C at the bottom.

Left pin Right pin
GPIO0 GPIO21
GPIO1 GPIO20
GPIO2 GPIO10
GPIO3 GPIO8
GPIO4 — RGB LED (WS2812) GPIO6 — SDA (AchiWire)
GPIO5 GPIO7 — SCL (AchiWire)
CHIP_EN (Reset) BOOT
+3.3 V +5 V

Arduino IDE

  1. Connect the board with a data USB-C cable.
  2. Install the ESP32 Arduino core.
  3. Board: ESP32C3 Dev Module
  4. USB CDC On Boot: Enabled (required for Serial over USB-C)
  5. Select the correct COM port and upload.

ESP-IDF

  1. Install ESP-IDF.
  2. Set target and build:
    idf.py set-target esp32c3
    idf.py build flash monitor

MicroPython

  1. Download MicroPython for ESP32-C3.
  2. Flash with esptool:
    esptool.py --chip esp32c3 write_flash -z 0x0 esp32c3-*.bin
  3. Connect with Thonny or any serial terminal at 115200 baud.

Blink — Addressable RGB LED (Arduino)

Uses SimpleRGBLed (install from Arduino Library Manager). RGB LED on GPIO 4.

#include <SimpleRGBLed.h>

SimpleRGBLed led(4);  // GPIO 4

void setup() {
  led.begin();
}

void loop() {
  led.setColor("green");  delay(500);
  led.setColor("red");    delay(500);
  led.setColor("blue");   delay(500);
  led.off();              delay(500);
}

I2C — AchiWire Connector (JST SH 1.0 mm)

4.7 kΩ pull-up resistors on board. Default pins:

  • SDA → GPIO 6
  • SCL → GPIO 7
#include <Wire.h>

void setup() {
  Wire.begin(6, 7);  // SDA, SCL
  // Your I2C code here
}

Additional information

Weight 0,035 kg
Dimensions 8 × 5 × 2 cm
Microcontroller

ESP32-C3FH4

Arquitecture

32-bit RISC-V

Clock Speed

160 MHz

Flash

4MB

Wireless

Wi-Fi 4 · Bluetooth LE 5.0

I2C Connector

JST SH 1.0mm (Qwiic / STEMMA QT compatible)

RGB LED

Yes

USB

USB-C

Power input

5V USB-C · up to 5.5V VIN

LDO Regulator

1A

Form factor

Castellated holes + 2.54mm headers

Dimensions

50 × 30 mm

Assembled

Hand-assembled in Portugal

Hardware Files

Reviews

There are no reviews yet.

Be the first to review “ACH-ESP32-C3F4 — ESP32-C3 Development Board · Designed in PT”

Your email address will not be published. Required fields are marked *

GitHub Repository

Hardware design files, schematics, and code examples for the ACH-ESP32-C3F4.

View on GitHub →
